Diamondback

Diamondback™

Model Specs
POWERFUL FEATURES IN A COMPACT PROFILE

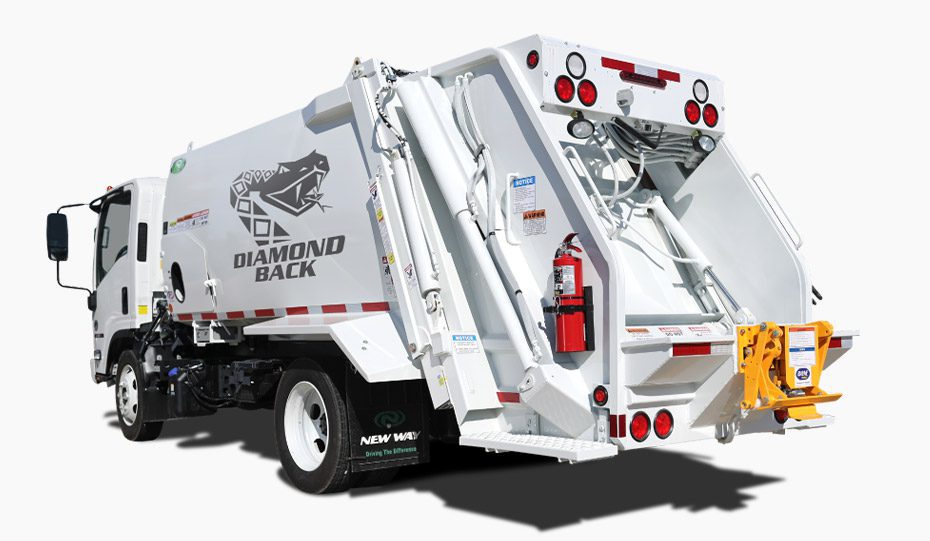

The New Way® Diamondback™ Rear Loader refuse truck's quality in workmanship and raw materials differentiate it from the competition. This compact, low-profile garbage truck with a low load-sill threshold has a compaction rate of approximately 800 lb. per yd³ on the standard unit and up to approximately 1,000 lbs per yd³ on the HC Model.

When searching for quality, affordability and maneuverability to service residential and park routes, the Diamondback refuse truck is the answer. It is available in 6 or 8 yd³ capacities, and is adaptable to all residential cart tippers.

The Diamondback is lethal to the competition as it comes fully equipped with a range of standard features that are merely options on most other units, including a rear-vision camera and two-year cylinder warranty.

Download Brochure
Semi automatic cycling
Auto back pack
Auto-lock tailgate
Back up alarm
Upper rear lights
ICC lights and reflectors
Sight gauge on oil tank
Chrome cylinder rods
Side access door
Driver alert buzzer
Tailgate ajar indicator
Adjustable riding steps rear
Imron elite productive paint
Color rear vision camera system
Special lighting
PTO & pump
CNG powered
Cart tipper
HOPPER CAPACITYBODY CAPACITYSECOND CYCLE TIMEBODY WEIGHT*COMPACTION RATES
1 YD³6 to 8 YD³8 to 10 Sec.5.8K - 6.1KUp to 800 lbs.
