| TECHNICAL SPECS | 30' MODEL | 32' MODEL | 35' MODEL |
|---|---|---|---|
| GVWR | 35,000 lbs. | 35,000 lbs. | 35,000 lbs. |
| Available Engines | Cummins – B6.7 or L9 Diesel, L9N CNG, LNG and Allison Hybrid | Cummins – B6.7 or L9 Diesel, L9N CNG, LNG and Allison Hybrid | Cummins – B6.7 or L9 Diesel, L9N CNG, LNG and Allison Hybrid |
| Front And Rear Axles | Meritor | Meritor | Meritor |
| Brakes | Air S-Cam Drum Brakes with ABS | Air S-Cam Drum Brakes with ABS | Air S-Cam Drum Brakes with ABS |
| Tires | 275/70R 22.5 | 275/70R 22.5 | 275/70R 22.5 |
| Front And Rear Doors | Vapor Air - Slide Glide | Vapor Air - Slide Glide | Vapor Air - Slide Glide |
| Electrical System | I/O Controls Multiplex - G2A, G3 or G4 | I/O Controls Multiplex - G2A, G3 or G4 | I/O Controls Multiplex - G2A, G3 or G4 |
| Suspension | Air Suspension Front And Rear | Air Suspension Front And Rear | Air Suspension Front And Rear |
E-Z RIDER II
Model SpecsWe call it The Gold Standard of public bus transportation because the E-Z Rider II is so adaptable for those needing a mid-size bus design. The stylized swept windshield increases driver visibility, decreases glare, and reduces wind noise. An optional center door ramp easily accommodates large electric scooters. ADA-compliant wheelchair ramps at the front and center doors are also available, as are dozens of floorplans. It's the perfect airport shuttle bus. It's likewise ideal for smaller cities, sports teams, colleges, and more. Plus, there are three body lengths to choose from.

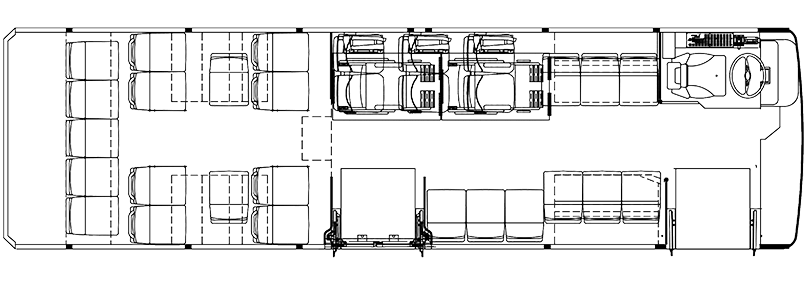

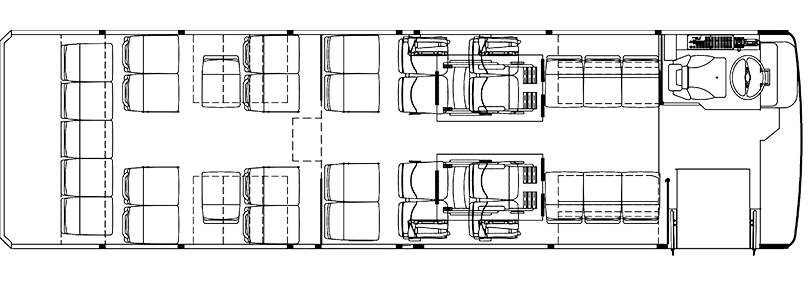

View Floorplans
All ENC buses are built with flexibility in mind. You can choose from any of these popular floorplan options, or we'd be happy to customize one to meet your individual needs.
| Model | E-Z RIDER II 30' | E-Z RIDER II 32' | E-Z RIDER II 35' |
|---|---|---|---|
| Maximum Passenger Seating | 35 | 33 | 41 |
| Length, Body | 366.5" | 373" | 426.5" |
| Width, Body | 102" | 102" | 102" |
| Height, Overall w/ Roof HVAC | 128" | 128" | 128" |
| Height, Overall w/ CNG Tanks | 136" | 136" | 136" |
| Wheelbase | 160" | 168" | 220" |
| Front Overhang | 89.5" | 89.5" | 89.5" |
| Rear Overhang | 115" | 115" | 115" |
| Approach Angle (deg) | 8.7° | 8.7° | 8.7° |
| Breakover Angle (deg) | 14° | 14° | 12° |
| Departure Angle (deg) | 8.7° | 8.7° | 8.7° |
| Height, First Step Unkneeled | 13.88" | 13.88" | 13.88" |
| Height, First Step Kneeled | 10.88" | 10.88" | 10.88" |
| Height, Interior @ Front Axle | 95" | 95" | 95" |
| Height, Interior @ Rear Axle | 78.25" | 78.25" | 78.25" |
| Standard Door Width, Between Grab Rails | 32" | 32" | 32" |
| Passenger Door Height | 78.5" | 78.5" | 78.5" |
| FMVSS 208 Certified Passenger Seat Belts | Available | Available | Available |
| ADA Wheelchair Ramp Accessibility | Front and/or Rear Doors | Front and/or Rear Doors | Front and/or Rear Doors |
| HVAC | Roof or Rear | Roof or Rear | Roof or Rear |
| Altoona Tested | 12y/500k | 12y/500k | 12y/500k |
| MODEL | E-Z RIDER II 30' |
|---|---|
| Chassis | ENC |
| Wheelbase | 160" |
| GVWR With Aluminum Wheels | 35,000 lbs |
| GAWR, Front With Aluminum Wheels | 12,000 lbs |
| GAWR, Rear With Aluminum Wheels | 23,000 lbs |
| Tires | 275/70R22.5 |
| Body Corner Turning Radius | 31' |
| Base Engine | ISB 6.7L |
| Alternate Engine Type | ISL 8.9L/L9N |
| Optional Fuels | CNG, Hybrid |
| Standard Diesel Fuel Tank | 80 Gallon |
| Base Transmission | B300R |
| Alternate Transmission | B400R, VOITH, ZF |
| Suspension System - Front/Rear | Air/Air |
| Air Brakes | Drum |
| Front Axle | Arvin Meritor |
| Rear Axle | Arvin Meritor |
| Standard Differential Ratio | 5.38 |
| Multiplex Electrical System | I/O Controls |
