AXESS-FC - City-View
Axess FC

AXESS-FC

Model Specs
MEETING REAL WORLD NEEDS WITH ZERO EMISSIONS

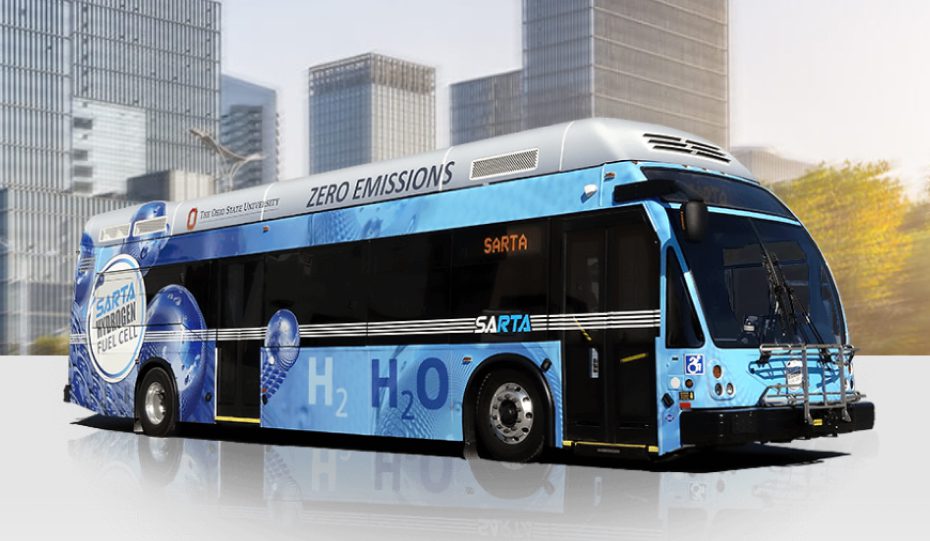

It's the hybrid bus version of the Axess and where public transportation should be going. industry should be going. Fueled by hydrogen, it never needs gas and the only emission coming from the tailpipe is water. It's also the only hydrogen bus in the industry that's federally certified for 3-point seat belts. It features a heavy-duty low floor that can be adapted for any application: airport shuttle, college transit, you name it. And like its brother, the Axess, the Axess-FC offers optional ADA-compliant wheelchair ramps. It's also completed Altoona testing and passed numerous side impact and roof crush tests to insure passenger safety.

View Floorplans

All ENC buses are built with flexibility in mind. You can choose from any of these popular floorplan options, or we'd be happy to customize one to meet your individual needs.

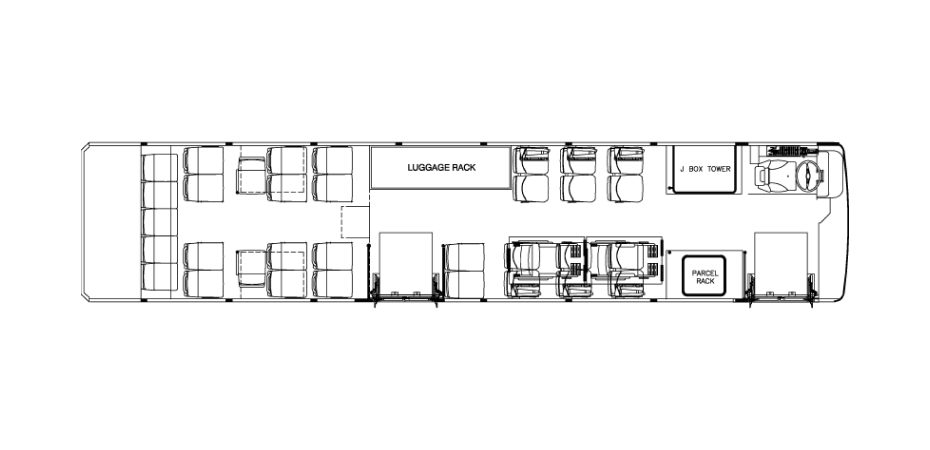

Axess FC Floor Plan
Axess FC Floor Plan
MODEL35’ LOW-FLOOR40’ LOW-FLOOR
Max. passenger seating3543
Length: bodyLength: body484”
Width: body102”102”
Heigh: overall w/fuel celln/a140”
Wheelbase215”275”
Front overhang91.5”97”
Rear overhand114.5”120”
Approach angle (deg)8.78.7
Breakover angle (deg)129
Departure angle (deg)8.78.7
Height: first step unkneeled13.6313.63
Height: first step kneeled10.6310.63
Height: interior @ front axle9595
Height: interior @ rear axle7979
Standard door width: between grab rails3434
Passenger door height7979
FMVSS 208 certified passenger seat beltsAvailableAvailable
ADA wheelchair ramp accessibilityFront and/or rear doorsFront and/or rear doors
HVACRoof or rearRear
Altoona testedIn process12y/500k
MODEL35’ LOW-FLOOR40’ LOW-FLOOR
ChassisENCENC
Wheelbase215”275”
GVWR with aluminum wheels43,380 lbs.43,380 lbs.
GAWR: front with aluminum wheels15,660 lbs.15,660 lbs.
GAWR: rear with aluminum wheels27,720 lbs.28,640 lbs.
Tires305/70R 22.5305/70R 22.5
Body corner turning radius35’ 8”44’
Base engineISL 8.9LHydrogen fuel cell
Alternate engine typeL9N - CNGn/a
Optional fuelsCNG, Hybridn/a
Standard diesel fuel tank125 gallonn/a
Base transmissionB400RHybridrive
Alternate transmissionVoith, ZFn/a
Suspension system: front/rearAir/airAir/air
Air brakesDisc or drumDisc or drum
Front axleArvin MeritorArvin Meritor
Rear axleArvin MeritorArvin Meritor
Standard differential ratio5.385.38
Multiplex electrical systemI/O controlsI/O controls
TECHNICAL SPECS35’ MODEL40’ MODEL
GVWR44,300 lbs.44,300 lbs.
Available enginesFuel cellFuel cell
Available transmissionsBAEBAE
Front & rear axlesMeritorMeritor
BrakesAir S-Cam drum or air disc brakes with ABSAir S-Cam drum or air disc brakes with ABS
Tires305/70R 22.5305/70R 22.5
Front & rear doorsVapour air - slide glideVapour air - slide glide
Electrical systemI/O controls multiplex - G3 or G4I/O controls multiplex - G3 or G4
SuspensionAir suspension front & rearAir suspension front & rear
