HOPPER CAPACITY | BODY CAPACITY | SECOND CYCLE TIME | BODY WEIGHT* | COMPACTION RATES |
---|---|---|---|---|
12 YD³ | 22 to 31 YD³ | 25 Sec. | 16.5K - 17.4K | 700 - 800 lbs. |
it-l10n-ithemes-security-pro
domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init
action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /home/forge/cityviewvehicles.com/wp-includes/functions.php on line 6114

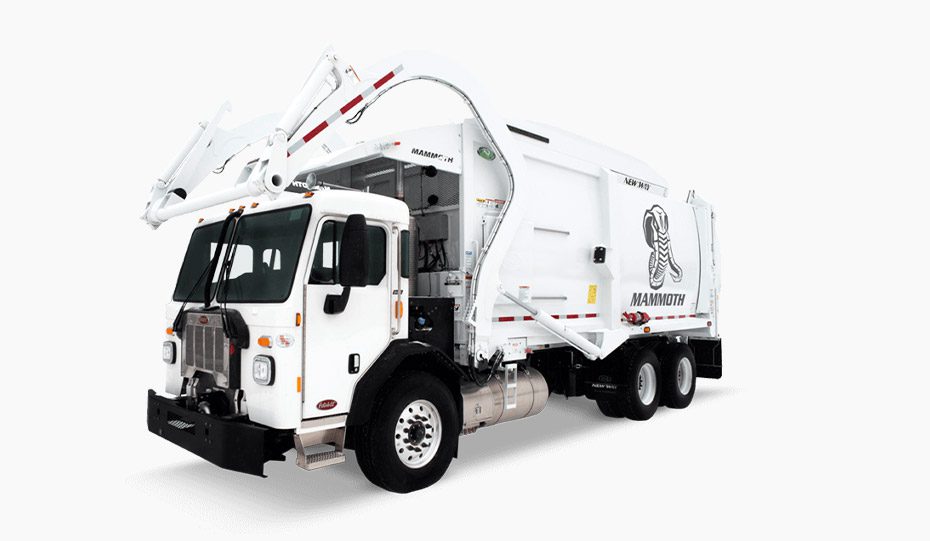

Designed with one-piece, curved shell body side construction for superior strength and streamlined appearance, the New Way® Mammoth™ Front Loader comes equipped with the strongest steel specs in the waste industry. In addition, heavy-duty, single-piece constructed arms, torque tube assembly and Pack-on-the-Go features maximize route and labor efficiency.
Standard features on the Mammoth front loader refuse truck include a 4-split bearing block with bronze bushings and an easy adjust deceleration valve, giving the operator control of the arm's return to the truck body. Two safety cameras come standard on this series; one affording the operator a view into the hopper and another to assist in reverse. This front loader also boasts the largest clean-out doors and sump in the industry. Combined, these two features set the standard for ease of access and the clean out of trash trapped behind the packing panel. As with all New Way® Trucks garbage trucks, the Mammoth comes standard with a two-year cylinder warranty.
No other front-load refuse truck on the market can offer the ease of use and maintenance, superior strength, durability and product support of a New Way® Mammoth front loader.
Nitrated pack cylinders |
Air joystick control |
Denison vane pump |
Auto-lock tailgate |
All LED lights |
Curved shell body |
Sliding hopper door |
Body side ladder |
Dual camera system |
Automatic packer |
Imron elite productive paint |
Mounting |
Pack-on-the-Go |
Air over hydraulic |
Hopper side access door |
Full ejection body |
Rear body sump with curved floor (145 gal) |
Dual sump clean out doors |
Special lighting |
Outside controls |
10,000 lb arm capacity |
Container disinfectant sprayer |
Pressure line filter |
Service hoist |
Electric valve |
West Coast/Lightweight model also available |
External pack cylinder hoses |
Under body valve mount |
HOPPER CAPACITY | BODY CAPACITY | SECOND CYCLE TIME | BODY WEIGHT* | COMPACTION RATES |
---|---|---|---|---|
12 YD³ | 22 to 31 YD³ | 25 Sec. | 16.5K - 17.4K | 700 - 800 lbs. |
