RTX

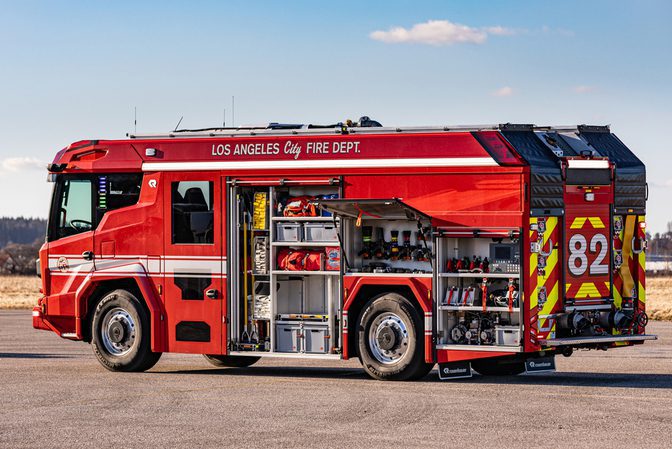

Model SpecsThis isn’t a fire truck redesign, it’s a reinvention. Every square inch reimagined. Safety. Maneuverability. Agility. Power. The RTX is as much an ergonomic extension of the fire fighter as it is a truck. And while others are bringing electric vehicles into the industry, they’re not bringing this. This is the leader. The high-water mark. And this changes everything. A nearly silent operation but generating a buzz reverberating around the world. The mission was sustainability of people, property and planet. The result is the ultimate firefighting machine.
| Seating Configuration | Up to 7 seats |
| Driving Performance | 360 kW peak / 260 kW continuous | Equivalent to 350HP/490 HP |
| Drivetrain | All wheel Drive | Dual Electric Motors |
| Battery Capacity | 2 Batteries totaling 132 kWh of power |
| Range Extender | 3.0 Liter 300HP 6 Cylinder Diesel Engine |
| Driving Aids | EBS - Electronic Braking System * ABS - Automatic Braking System * ESC - Electronic Stability Control ADM - Automatic Drive Management |
| Brake System | Electronic Regenerative Braking and 17" Disc Brakes |
| Wheelbases | 173" |
| Suspension System | Hendrickson Adjustable Air Suspension with 4 Modes |
Adjustable Suspension Ground Clearances | * 7" | Operation Mode * 10" | Driving Mode * 14" | Off Road Mode * 19" | Wading Mode |
| Steering | Standard or All Wheel Steering (Countersteering and Crab Steering) |
| Mirrors | Wing mirrors or Electronic |
| Water Tank | 500 - 750 Gallons |
| Pump Capacity | 750 - 1500 GPM Normal or Normal / High Pressure Pumps |
| Pump Drive | Electronic or by Range extender |
| Hosebed Capacity | Up to 1000' 5" hose and up to 1000' of 2.5" hose |
| Crosslay Capacity | * (2) Crosslays with 200' of 1.75"" hose in body * Optional Front Bumper preconnect |
| Ground Ladders | Standard NFPA Pumper Compliment with Slide-In Body Storage Compartment |
