Smartwind

SmartWind

Model Specs

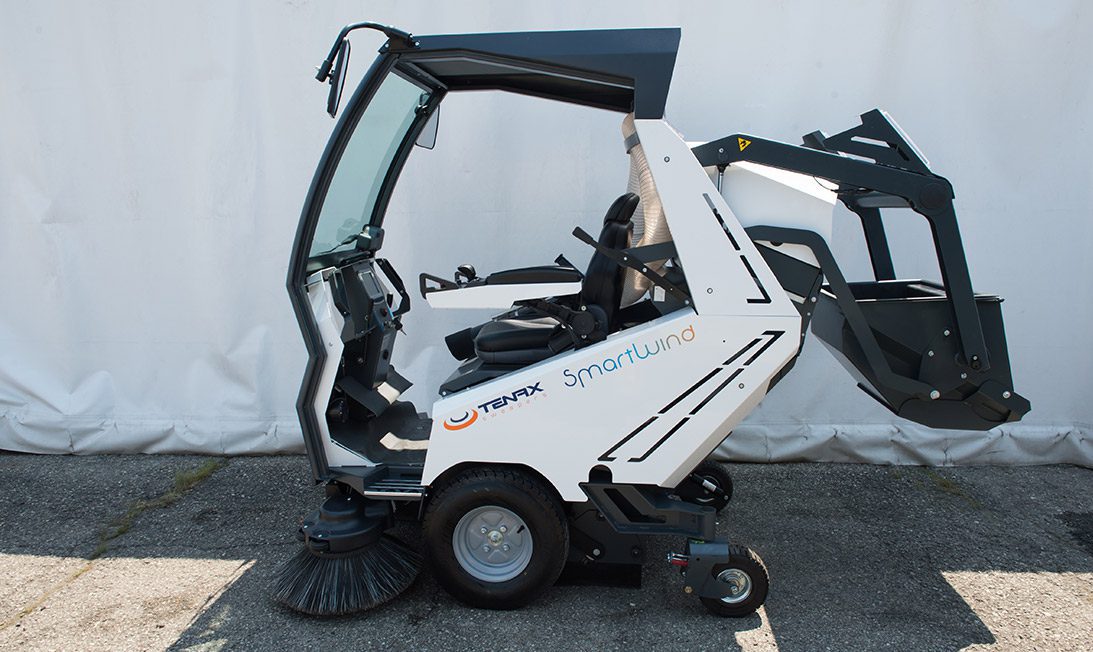

SmartWind is the one-of-a-kind 100% electric street sweeper, the most compact high dump ride on street and sidewalk sweeper.

Equipped with an innovative steer by wire motion system controlled by a joystick, which makes it both safe and maneuverable, it is the ideal solution for cleaning small and medium sized areas, both indoors and outdoors. Environmentally friendly and versatile, this ride on street and sidewalk sweeper improves the quality of life of residents and operators alike, by fully eliminating CO2 emissions and reducing noise emissions by 40%.

Front wheel electric steering

Load capacity: 0,23 T

Sweeping width: 55,11 Inch

24 Volt LiFe PO4 Lithium, AGM or Lead Acid Batteries

Maximum speed: 6,2 MPH

55,4 Gal waste container

13,2 Gal water tank

Work autonomy: 8-10 hours

Climbing ability: 22%

Technical specifications
SteeringTenax SmartWind is equipped with an innovative electric steering system managed by an ergonomic electronic joystick, allowing for precise steering in any situation. Operator safety is increased by the presence of sensors that automatically adjust steering based on speed. At the same time, the rear pivoting, shock-absorbing wheels make steering light and agile.
Batteries and runtimeSmartWind is equipped with various types of 24 Volt low-voltage battery packs specifically designed for use on this vehicle. The option of using different types of batteries (LiFe P04 Lithium, AGM and lead acid) makes it possible to fully adapt to the specific working and budget requirements of every customer. Depending on the type of battery used, the guaranteed autonomy runs from 8 to 10 hours, so it is capable of covering an entire shift. Our carefully tested technology ensures a minimal ecological footprint and high recyclability as well as the utmost safety due to the low voltage used.
Charging and recoverySmartWind can be equipped with on-board or external single phase chargers with different types of powers and voltages and different charging times, to fully meet customer requirements.
SweepingThe SmartWind electric ride on street and sidewalk sweeper is equipped with a mechanical suction waste collection system. Waste collected by the counter rotating brushes located in front of the front axis is conveyed by a central cylindrical, mobile and self-regulating brush. The panel filter available in different versions, including Polyester and certified HEPA, guarantees 99% filtration and traps fine dust particles up to PM 2.5. It also has a 11,81 Inch long suction hose with a diameter of 4,72 Inch, which can be used for all of those hard-to-reach areas. The street and sidewalk sweeper ensures top-notch performance during the work phase by adapting to any type of surface thanks to the self-balancing capabilities of every component.
Waste ContainerThe rear watertight 55,4 Gal capacity waste container is made of Fe360 stainless steel. It may be used with or without standard single-use plastic bags. Rear high tipping at 59 Inch allows for quick and easy emptying, with no physical effort by the operator. The 13,2 Gal clean water tank guarantees the utmost work autonomy and the use of the dust control system.
Driving comfort and safety SmartWind is equipped with an adjustable and ergonomic centrally positioned driver’s seat for an unparalleled driving experience. The roll bars guarantee driving with complete safety and ease, while the ergonomic driving joystick located on the right armrest provides even greater driving comfort. The ergonomic and intuitive LCD control display equipped with a user-friendly interface is located in a central position and is highly easy to use, allowing operators to concentrate on their work with no distractions. It is optionally possible to also install a soundproof cab equipped with a Laminated Glass, anti-glare panoramic windshield and doors made entirely of glass, guaranteeing optimal visibility. Supplementary video cameras can also provide even broader visibility of the surrounding area.
Connectivity Fleet monitoring and digitalization can support the daily work of both owners and operators. Tenax offers targeted support and services, with constant monitoring intended to reduce downtime and operating costs to a minimum. The objective is to guarantee optimal sweeper use by eliminating all usage inefficiencies.
Small sizeIts extremely compact and reduced exterior size enable SmartWind to be used on any type of indoor or outdoor surface and make it extremely comfortable and agile in urban environments as well as pedestrian zones.
